Trek Marlin 6 Gen 3
Details
Marlin 6 is the perfect ride for progressing your skills on the trails and versatile enough for commuting to work or school.
Marlin Gen 3 features an updated slacker frame geometry which makes it easier to control on descents while the 100mm suspension fork takes the edge off bumpy trails.
Its lightweight aluminum frame has internal routing that keeps cables protected and keep the bike looking sleek, Shimano 1X10-speed fuss-free Shimano Deore shifting and the serious stopping power of hydraulic disc brakes.
Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
Wheel size:
- Size XX-Small: 26-inch
- Sizes X-Small – Small: 27.5-inch
- Sizes Medium – XX-Large: 29-inch
Due to supply-chain issues, Specs are subject to change without notice.
Goodbye open dropouts. The Thru Skewer is a better, stronger, more precisely aligned rear wheel retention system that keeps your wheel more secure than quick-release skewers while still using the standard 135mm rear hub spacing.
The new Thru-Skew system is safer, simpler, and stronger, plus it makes removing the rear wheel for flat fixes a cinch.

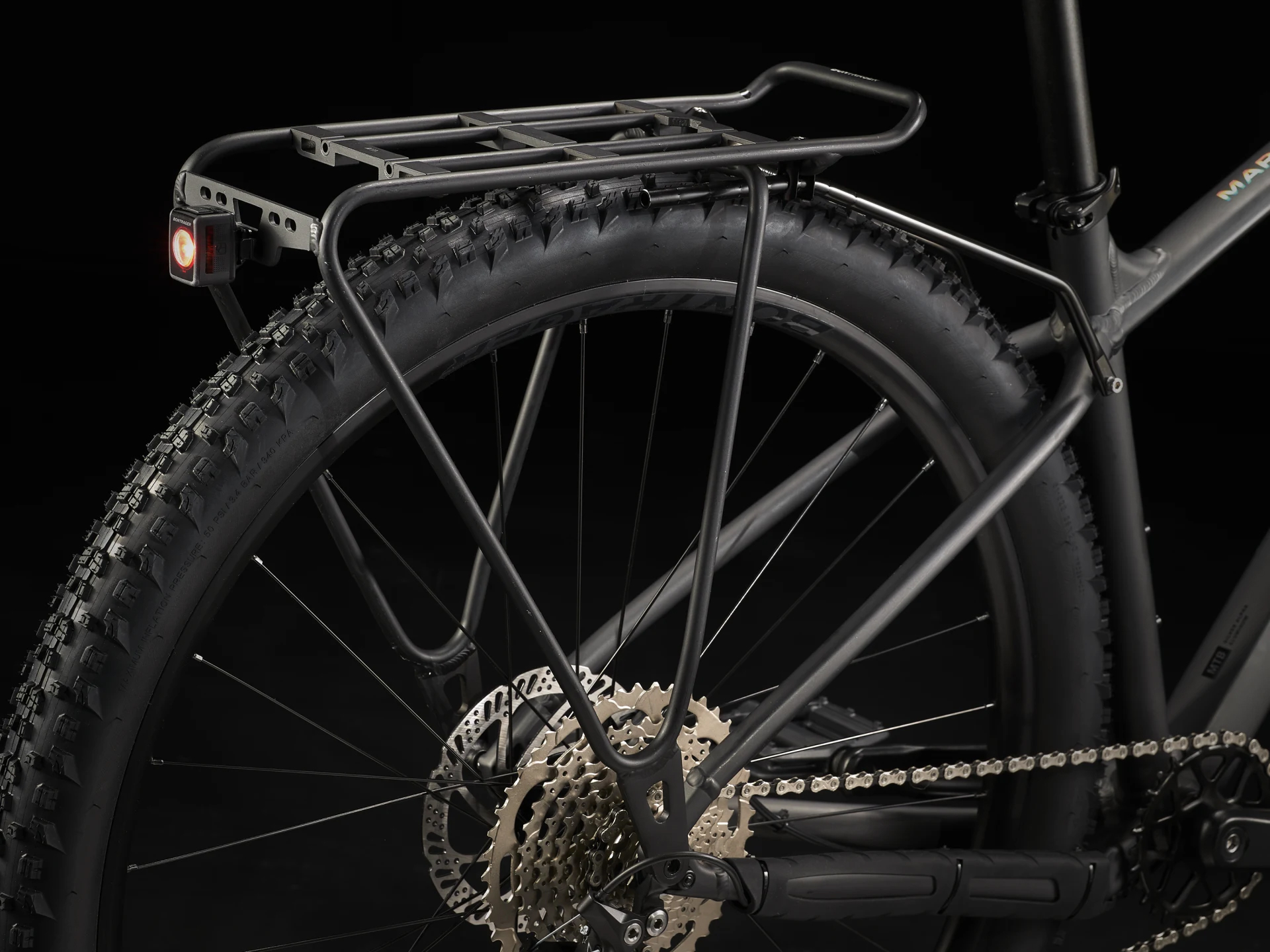

Rack and fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter.

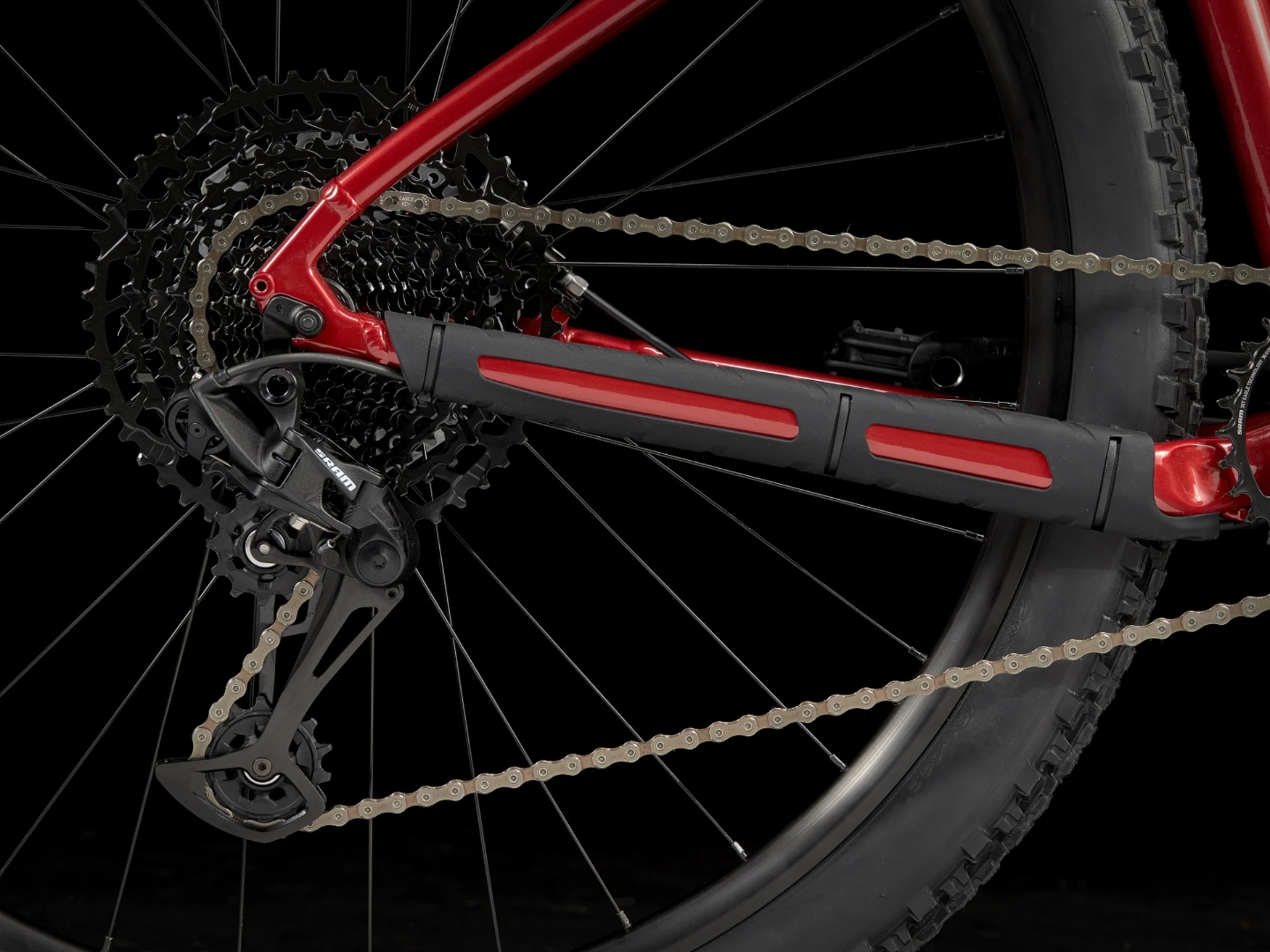

Full-length, full-coverage guards on the chainstay protect your frame and keep your ride quiet.
| Frame size number | 13.5" | 14.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23.0" |
|---|---|---|---|---|---|---|---|---|
| Frame size letter | XXS | XS | S | M | ML | L | XL | XXL |
| Wheel size | 26" | 27.5" | 27.5" | 29" | 29" | 29" | 29" | 29" |
| A — Seat tube | 32 | 34 | 37 | 42 | 43.5 | 45 | 50 | 54 |
| B — Seat tube angle | 74.0° | 73.8° | 73.8° | 73.4° | 73.4° | 73.4° | 73.4° | 73.4° |
| Effective seat tube angle | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| C — Head tube length | 9 | 9 | 10 | 10.5 | 11 | 11.5 | 13.5 | 15 |
| D — Head angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| E — Effective top tube | 52.1 | 55.1 | 57.9 | 61.5 | 63.1 | 64.7 | 67.8 | 70.7 |
| F — Bottom bracket height | 30.2 | 31.3 | 31.3 | 30.8 | 30.8 | 30.8 | 30.8 | 30.8 |
| G — Bottom bracket drop | 3.8 | 4.5 | 4.5 | 6 | 6 | 6 | 6 | 6 |
| H — Chainstay length | 43.3 | 43.3 | 43.3 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 |
| I — Offset | 4 | 4.2 | 4.2 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
| J — Trail | 10.4 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| K — Wheelbase | 106 | 109.2 | 112.1 | 116.3 | 118 | 119.7 | 123 | 126.1 |
| L — Standover | 65 | 65.8 | 69.2 | 74.7 | 75.9 | 77.1 | 79.1 | 81.6 |
| M — Frame reach | 36.5 | 39 | 41.5 | 44 | 45.5 | 47 | 49.5 | 52 |
| N — Frame stack | 54.4 | 56.3 | 57.2 | 60.9 | 61.4 | 61.8 | 63.7 | 65.1 |
| Size | Rider Height | Inseam |
|---|---|---|
| 2XS | 135 - 145 cm | 64 - 68 cm |
| 4'5" - 4'9" | 25" - 27" | |
| XS | 145 - 155 cm | 69 - 73 cm |
| 4'9" - 5'1" | 27" - 29" | |
| S | 155 - 165 cm | 74 - 78 cm |
| 5'1" - 5'5" | 29" - 31" | |
| M | 165 - 176 cm | 79 - 83 cm |
| 5'5" - 5'9" | 31" - 33" | |
| M/L | 173 - 180 cm | 81 - 86 cm |
| 5'8" - 5'11" | 32" - 34" | |
| L | 177 - 188 cm | 84 - 89 cm |
| 5'10" - 6'2" | 33" - 35" | |
| XL | 188 - 195 cm | 89 - 91 cm |
| 6'2" - 6'5" | 35" - 36" | |
| 2XL | 195 - 203 cm | 91 - 97 cm |
| 6'5" - 6'8" | 36" - 38" |
Specs
| Pedals | VP-536 nylon platform |
|---|---|
| Fork | Size: XXS - SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 26'' wheel, 100mm QR, 100mm travel | Size: XS , S - SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel | Size: M , ML , L , XL , XXL - SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel | |
| Hubs | Front: Formula DC-20, alloy, 6-bolt, 100mm ThruSkew | Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
| Stem | Size: XXS , XS , S - Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length | Size: M , ML , L - Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length | Size: XL - Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length | Size: XXL - Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Chain | KMC X10, 10 speed |
| Frame | Size: XXS , XS - Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew | Size: S , M , ML , L , XL , XXL - Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
| Tires | Size: XXS - Bontrager XT3 Comp, wire bead, 30 tpi, 26x2.35'' | Size: XS , S - Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40'' | Size: M , ML , L , XL , XXL - Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'' |
| Brakes | Tektro HD-M275 hydraulic disc |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
| Spokes | 14g stainless steel |
| Headset | Semi-integrated, 1-1/8'' |
| Crankset | Size: XXS - Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length | Size: XS , S , M , ML , L , XL , XXL - Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length |
| Seatpost | Size: XXS - Bontrager alloy, 31.6mm, 12mm offset, 300mm length | Size: XS , S , M - Bontrager alloy, 31.6mm, 12mm offset, 330mm length | Size: ML , L , XL , XXL - Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
| Shifters | Shimano Deore M4100, 10 speed |
| Handlebars | Size: XXS , XS - Bontrager alloy, 31.8mm, 5mm rise, 690mm width | Size: S - Bontrager alloy, 31.8mm, 15mm rise, 720mm width | Size: M , ML , L , XL , XXL - Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Tape/Grips | Bontrager XR Endurance Comp, lock-on |
| Bottom Bracket | VP BC73, 73mm, threaded cartridge |
| Rear Derailleur | Shimano Deore M5120, long cage |
| Cassette/Freewheel | Shimano Deore M4100, 11-46, 10 speed |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matte Olive Grey / Small / 27.5-inch | 601842863213 | 5277281 | BIK516125693 |
| Blue Sage / Small / 27.5-inch | 601842863299 | 5277273 | BIK451644493 |
| Blue Sage / Medium / 29-inch | 601842863282 | 5277274 | BIK445921283 |
| Hex Blue to Deepdark Blue / Medium / 29-inch | 601842863367 | 5277266 | BIK436111093 |
| Matte Dnister Black / Medium / 29-inch | 601842863442 | 5277258 | BIK545161743 |
| Matte Olive Grey / Medium / 29-inch | 601842863206 | 5277282 | BIK504637983 |
| Matte Dnister Black / Medium/Large / 29-inch | 601842863435 | 5277259 | BIK537469823 |
| Matte Dnister Black / Large / 29-inch | 601842863428 | 5277260 | BIK538923553 |
| Matte Dnister Black / X-Large / 29-inch | 601842863411 | 5277261 | BIK535505223 |
