Trek Emonda SL 7
Details
Émonda SL 7 Disc is an ultralight carbon road bike that's aerodynamically designed for more free speed while hammering flats and flying up climbs.
A wireless Shimano Ultegra Di2 electronic drivetrain delivers faster, smoother, and more responsive shifts than ever before. The Ultegra hydraulic disc brakes give you superior stopping power and confidence on those long downhill descents.

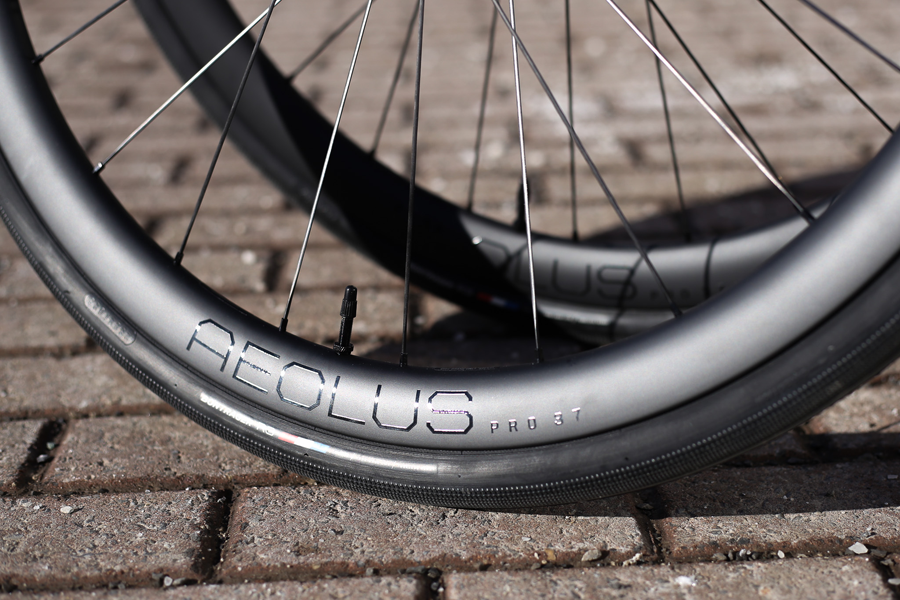

Bontrager Aeolus Pro 37 are lightweight carbon wheels perfect wheel for climbs, crits, cross, and more.
Due to supply-chain issues, Specs are subject to change without notice.
Émonda is the lightest road bike in Trek's lineup and the first up every climb. Trek scrutinized every inch of this legendary race bike to offer ultimate ride quality and balanced handling without compromising weight. Complete with fast and light aerodynamic tube shaping, Émonda helps riders go faster than ever on flats and climbs alike.
Ultegra Di2 R8100 is Shimano's most inspired drivetrain, packed with innovative, game-changing features.
HYPERGLIDE+ technology allows for crisp, seamless shifts both up and down the gear range, even during maximal efforts.
The new Di2 shifting system introduces Shimano's exclusive wireless integrated circuit, and the move to a 12 speed cassette ensures you have all the gearing you need.
Ergonomics and aerodynamics have been enhanced at every turn, and you can set up the drivetrain just the way you like it via Shimano’s user-friendly E-Tube app.
The versatile Aeolus Pro 37 is the perfect wheel for climbs, crits, cross, and more. The strong, lightweight Pro-level OCLV Carbon allows for faster, more stable rim profiles—and the silky smooth hubs rolling on DT Swiss 350 internals deliver a quick-rolling ride wherever you roam.
All Bontrager carbon wheels are warrantied for life for the original purchaser and come with the added protection of Carbon Care. If you damage your wheels while riding in the first two years of ownership, we'll replace them. It’s that easy.
| Frame size number | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
|---|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube (cm) | 45.3 | 48.3 | 49.6 | 52.5 | 55.3 | 57.3 | 59.3 |
| B — Seat tube angle | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| C — Head tube length (cm) | 11.1 | 12.1 | 13.1 | 15.1 | 17.1 | 19.1 | 21.1 |
| D — Head angle | 72.1° | 72.8° | 73.0° | 73.5° | 73.8° | 73.9° | 73.9° |
| E — Effective top tube (cm) | 52.1 | 53.4 | 54.3 | 55.9 | 57.4 | 58.6 | 59.8 |
| G — Bottom bracket drop (cm) | 7.2 | 7.2 | 7 | 7 | 6.8 | 6.8 | 6.8 |
| H — Chainstay length (cm) | 41 | 41 | 41 | 41 | 41.1 | 41.1 | 41.2 |
| I — Offset (cm) | 4.5 | 4.5 | 4.5 | 4 | 4 | 4 | 4 |
| J — Trail (cm) | 6.2 | 5.8 | 5.6 | 5.8 | 5.7 | 5.6 | 5.6 |
| K — Wheelbase (cm) | 97.4 | 97.7 | 98.1 | 98.3 | 99.2 | 100.1 | 101 |
| L — Standover (cm) | 71.1 | 73.2 | 74.4 | 76.8 | 79.3 | 81.1 | 82.9 |
| M — Frame reach (cm) | 37.8 | 38.3 | 38.6 | 39.1 | 39.6 | 39.9 | 40.3 |
| N — Frame stack (cm) | 52.1 | 53.3 | 54.1 | 56.3 | 58.1 | 60.1 | 62 |
| Saddle rail height min (w/short mast) (cm) | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
| Saddle rail height max (w/short mast) (cm) | 64.5 | 67.5 | 70 | 73 | 75 | 77 | 79 |
| Saddle rail height min (w/tall mast) (cm) | 62 | 65 | 67.5 | 70.5 | 72.5 | 74.5 | 76.5 |
| Saddle rail height max (w/tall mast) (cm) | 68 | 71 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
| 47 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | |
|---|---|---|---|---|---|---|---|---|
| Rider Height | 152.0 - 158.0 cm | 158.0 - 163.0 cm | 163.0 - 168.0 cm | 168.0 - 174.0 cm | 174.0 - 180.0 cm | 180.0 - 185.0 cm | 185.0 - 190.0 cm | 190.0 - 195.0 cm |
| Inseam | 71.0 - 75.0 cm | 74.0 - 77.0 cm | 76.0 - 79.0 cm | 78.0 - 82.0 cm | 81.0 - 85.0 cm | 84.0 - 87.0 cm | 86.0 - 90.0 cm | 89.0 - 92.0 cm |
Specs
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
| Wheels |
Front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle Rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11/12-speed freehub, 142x12mm thru axle |
| Axles | Bontrager Switch thru axle, removable lever |
| Tires | Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25c |
| Crankset | Shimano Ultegra R8100, 52/36 |
| Shifters | Shimano Ultegra R8170 Di2, 12 speed |
| Front Derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear Derailleur | Shimano Ultegra R8150 Di2 |
| Cassette/Freewheel | Shimano Ultegra R8100, 11-30, 12 speed |
| Chain | Shimano Ultegra/XT M8100, 12 speed |
| Brakes | Shimano MT800, centerlock, 160mm |
| Handlebars |
Bontrager Pro VR-C, OCLV Carbon, 31.8mm, Di2 routing, 100mm reach, 124mm drop Bontrager Pro IsoCore VR-SF, 42cm |
| Tape/Grips | Bontrager Supertack Perf tape |
| Stem | Bontrager Pro, 31.8mm, Blendr compatible, 7 degree |
| Seatpost | Bontrager carbon seatmast cap, 20mm offset |
| Saddle | Bontrager Aeolus Comp, steel rails, 145mm width |
| Pedals | Sold separately |
| Accessories & Extras | Charging cable included |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Mulsanne Blue/Trek Black / 56cm | 601842574805 | 5259178 | BIK538214602 |
| Mulsanne Blue/Trek Black / 58cm | 601842574799 | 5259179 | BIK535045612 |
