Trek Dual Sport 1 Gen 5
Details
Rolling from path and pavement into the wild beyond, new Dual Sport boosts all-road capability, so you can ride from tarmac to rail trail with cool composure.
Dual Sport 1 is a go-anywhere hybrid bike that's fun to ride on a variety of surfaces.
It features a light aluminum frame, a sturdy 2x8 speed Shimano drivetrain with a wide range of gearing so you're never pedaling too hard or too soft, and powerful disc brakes for stopping power in any weather. Wide wheels and lofty tires soak up bumps and rough terrain for a comfortable, confident ride on pavement, light gravel trails, bike paths, and more.
Added mounts provide a host of places to secure bags, fenders, and racks, so you can tune your Dual Sport to perfectly fit your adventure.
Due to supply-chain issues, Specs are subject to change without notice.

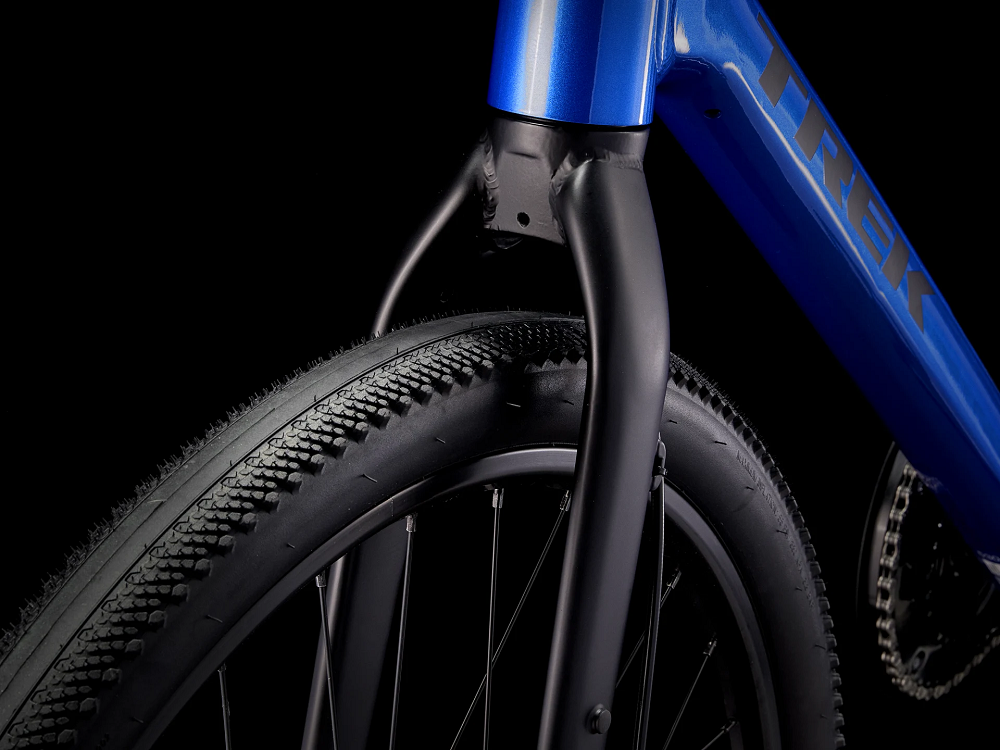

Wide 650b wheels and wide 50c tires soak up bumps and rough terrain for a comfortable, confident ride on pavement, light gravel trails, bike paths, and more.

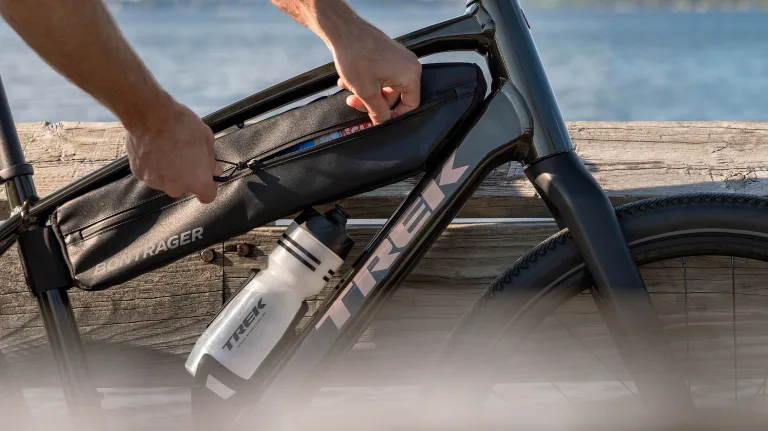

New mounting points pair with Bontrager Adventure Bags (sold separately) to securely mount bags to your bike without tons of straps and bungees. Simply bolt on, load up, roll out.
| Frame size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Wheel size | 27.5" | 27.5" | 27.5" | 27.5" |
| A — Seat tube (cm) | 37.5 | 42 | 46.5 | 52 |
| B — Seat tube angle | 73.8° | 73.3° | 72.8° | 71.8° |
| C — Head tube length (cm) | 14 | 16.5 | 19 | 21.5 |
| D — Head angle | 69.8° | 70.3° | 70.8° | 71.8° |
| E — Effective top tube (cm) | 54.5 | 56.5 | 58.5 | 61.5 |
| F — Bottom bracket height (cm) | 28.9 | 28.9 | 28.9 | 28.9 |
| G — Bottom bracket drop (cm) | 6 | 6 | 6 | 6 |
| H — Chainstay length (cm) | 44.7 | 44.7 | 44.7 | 44.7 |
| I — Offset (cm) | 3.9 | 3.9 | 3.9 | 3.9 |
| J — Trail (cm) | 8.7 | 8.3 | 8 | 7.4 |
| K — Wheelbase (cm) | 105.2 | 106.3 | 107.2 | 107.9 |
| L — Standover (cm) | 72.3 | 76.1 | 80 | 84.3 |
| M — Frame reach (cm) | 37.8 | 38.5 | 39.1 | 40.1 |
| N — Frame stack (cm) | 57.3 | 59.8 | 62.4 | 65.2 |
| Size | Rider Height | Inseam |
|---|---|---|
| X-Small | 4'10" - 5'1" | 27" - 29" |
| Small | 5'1" - 5'5" | 28" - 31" |
| Medium | 5'5" - 5'9" | 30" - 33" |
| Large | 5'9" - 6'1" | 32" - 35" |
| X-Large | 6'1" - 6'6" | 34" - 37" |
Specs
| Frame | Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount. 135x5mm QR |
|---|---|
| Fork | Dual Sport steel, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black |
| Hubs |
Front: Formula DC-20, alloy, 6-bolt, 5x100mm QR Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Axles |
Front: 139x5mm bolt-on Rear: 152x5mm QR |
| Tires | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50c |
| Bottom Bracket | Sealed cartridge, 68mm |
| Crankset | Forged alloy, 46/30, chainguard, 170mm length |
| Shifters | Shimano EF500, 8 speed |
| Front Derailleur | Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull |
| Rear Derailleur | Shimano Altus M310 |
| Cassette/Freewheel | Shimano HG31, 11-32, 8 speed |
| Chain | KMC Z8.3 |
| Brakes | Tektro MD-U310 mechanical disc, flat mount, 160mm rotor |
| Rotors | Max brake rotor size: 160mm |
| Handlebars |
Size: S, M Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width Size: L, XL Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width |
| Tape/Grips | Bontrager Satellite |
| Stem |
Size: S, M Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length Size: L, XL Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length |
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| Saddle | Bontrager Sport |
| Pedals | Wellgo nylon platform |
* Subject to change without notice.
Videos
The 5th Generation Trek Dual Sport // Detailed Walkthrough
Meet your anytime, anywhere, adventure hybrid. Dual Sport is a go-anywhere bike ready to roll fast on the road and explore beyond. Go light with the Dual Sport that takes you from road to gravel with a swift and featherweight ride. No matter where you ride, Dual Sport is a versatile bike that’s up for whatever the day has in store for you.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Mercury / Medium | 768682734285 | 5275877 | BIK441665873 |
| Mercury / X-Large | 768682734445 | 5275879 | BIK449963683 |
