Trek Domane AL 2 Gen 4

Trek Domane AL 2 Gen 4
  • Color: Crimson to Dark Carmine Fade
  • Color: Matte Lithium Grey
  • Color: Plasma Grey Pearl
$1,274.99
$1,499.99
Please select options
In Store / Curbside Pickup Only. Bike Orders are typically ready in 2 – 5 days*. *Bikes may need to be built or transferred from another location. This may add extra processing time.

Details

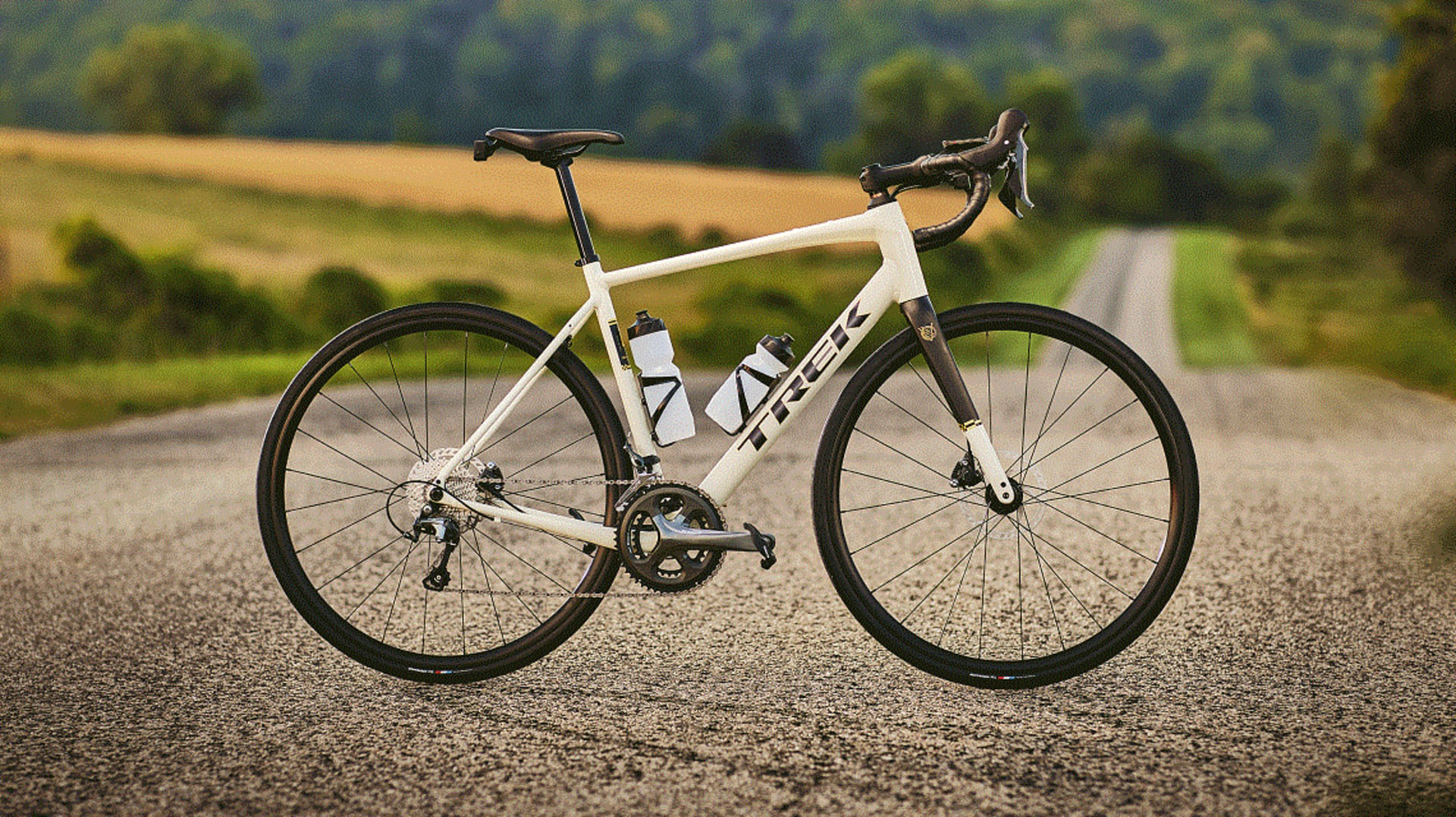

Domane AL 2 is a speedy and versatile performance road bike that's a perfect starting point for anyone looking to get into road riding.

Featuring a lightweight aluminum frame with a road smoothing carbon fiber fork that has clearance for larger tires. Domane AL comes stock with 32mm tires.

Also featured is a 2x8-speed Shimano Claris drivetrain, rack, fender, and top tube mounts, and a comfortable all-day riding position.

Domane AL 2 is perfect for group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.

A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.

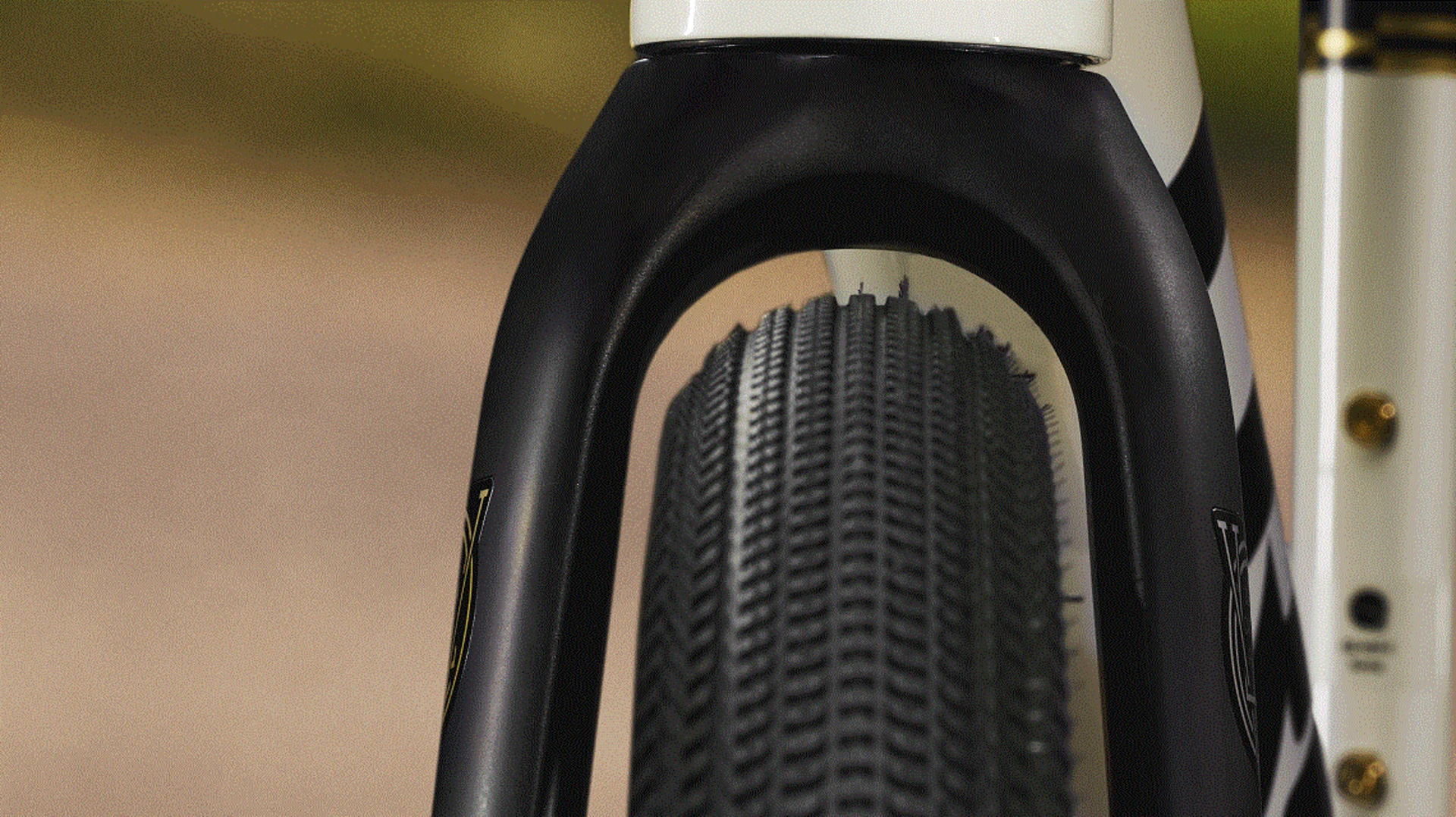

Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.

Domane AL come stock with 32 mm tires but has clearance for 38 mm gravel tires or 35 mm tires with fenders.

Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.

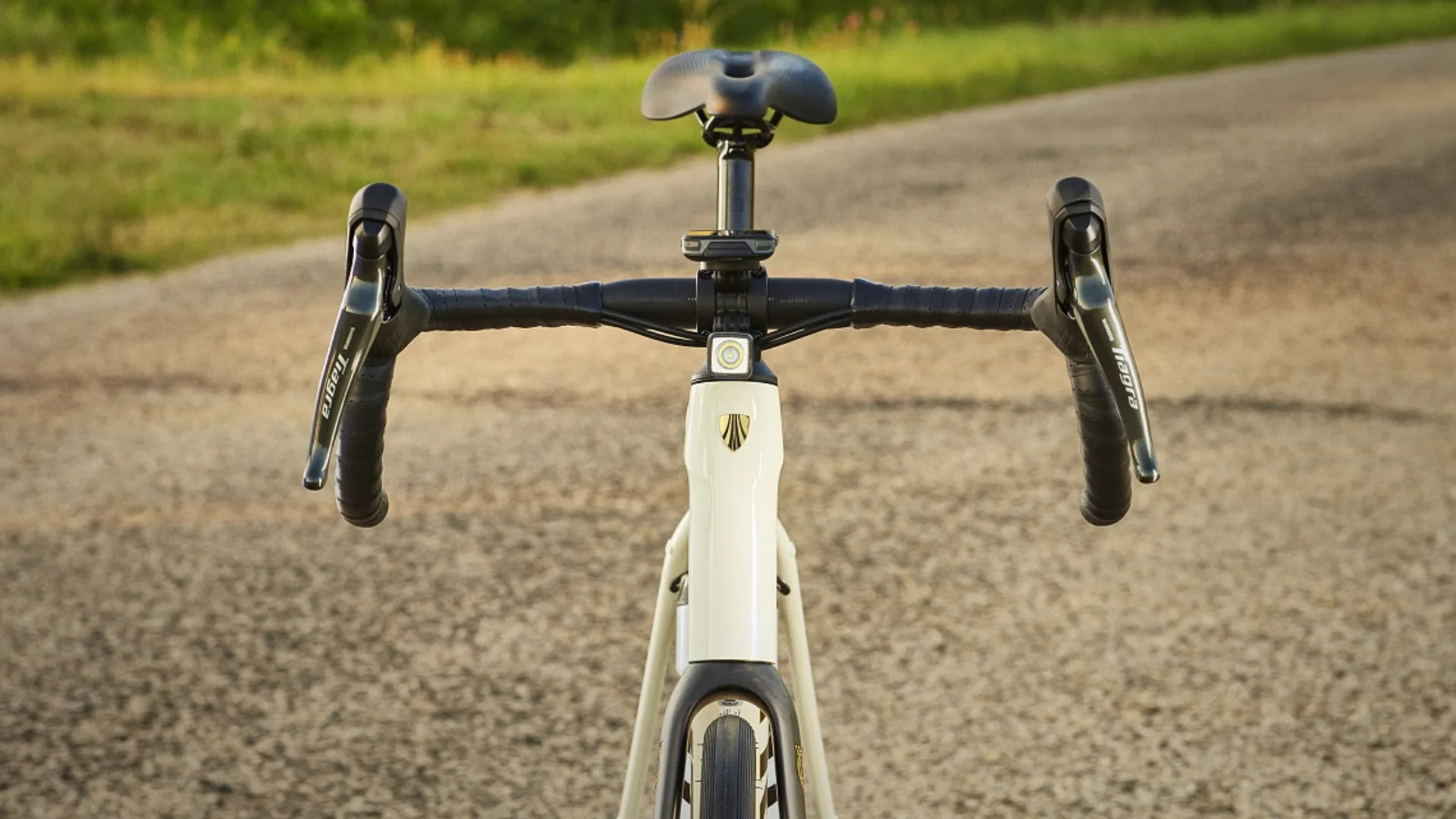

Internal cable routing and an integrated cockpit provides premium looks and a clean aeshetic.

Sizes:
Frame SizeRider Height (in)Rider Heigh (cm)Rider Inseam (in)Rider Inseam (cm)
44 4'11" - 5'0" 150 - 153 28" - 29" 71 - 73
49 5'1" - 5'4" 156 - 163 29" - 30" 74 - 77
52 5'4" - 5'6" 163 - 168 30" - 31" 76 - 79
54 5'6" - 5'9" 168 - 174 31" - 32" 78 - 82
56 5'9" - 5'11" 174 - 180 32" - 33" 81 - 85
58 5'11" - 6'1" 180 - 185 33" - 34" 84 - 87
61 6'1" - 6'3" 185 - 191 34" - 35" 86 - 90

Sizes:
Frame size number44 cm49 cm52 cm54 cm56 cm58 cm61 cm
Wheel size 700c 700c 700c 700c 700c 700c 700c
A — Seat tube (cm) 39 44 47.5 50 52.5 54.8 57.6
B — Seat tube angle 74.6° 74.6° 74.2° 73.7° 73.3° 73.0° 72.7°
C — Head tube length (cm) 9.5 12.3 14.5 16 17.5 19.5 23.5
D — Head angle 70.3° 70.8° 71.3° 71.3° 71.9° 72.0° 72.1°
E — Effective top tube (cm) 50.7 51.6 53 54.2 55.4 56.7 58.6
G — Bottom bracket drop (cm) 8 8 8 8 7.8 7.8 7.5
H — Chainstay length (cm) 42 42.5 42 42 42 42.5 42.5
I — Offset (cm) 5.3 5.3 5.3 5.3 4.8 4.8 4.8
J — Trail (cm) 6.6 6.6 5.9 5.9 6.1 6 6.3
K — Wheelbase (cm) 98.3 100.1 100.3 101 101.8 102.2 103.8
L — Standover (cm) 65.7 71.7 73.5 75.4 77.6 79.6 84.2
M — Frame reach (cm) 36 36.8 37.1 37.4 37.7 38 38.5
N — Frame stack (cm) 51 54 56.1 57.5 59.1 61.1 64.6
Stem length (cm) 70 80 90 90 100 100 110

Specs

Frame 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Rims Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Hubs Front: Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Rear: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Spokes 14g stainless steel, black
Tires Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Bottom Bracket Shimano UN30, 68mm, threaded cartridge, 110mm spindle
Crankset Size 44: Shimano RS200, 50/34 (compact), 165mm length
Size 49, 52, 54: Shimano RS200, 50/34 (compact), 170mm length
Size 56, 58, 61: Shimano RS200, 50/34 (compact), 175mm length
Shifters Right: Shimano Claris ST-R2000-R, 8 speed, right
Left: Shimano Claris ST-R2000-L, 8 speed, left
Front Derailleur Shimano Claris R2000, FD-R2000, 8-speed, 31.8mm clamp
Rear Derailleur Shimano Claris RD-R2000, long cage, 34T max cog
Cassette/Freewheel Shimano HG31, CS-HG31, 11-32, 8 speed
Chain Shimano Sora HG71, 8 speed
Brakes Tektro C550 mechanical disc brake, dual piston, flat mount
Rotors Tektro wave, 6-bolt, 160mm
Handlebars Size 44: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drops width
Size 44, 49: Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
Size 49: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drops width
Size 52: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drops width
Size 52: Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
Size 54, 56: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drops width
Size 54, 56: Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
Size 58, 61: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
Size 58, 61: Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Tape/Grips Bontrager Supertack Perf tape
Stem Size 44: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size 49: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size 52, 54: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size 56, 58: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size 61: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Seatpost Size 44, 49: Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
Size 52, 54, 56, 58, 61: Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Pedals Sold Separately
Saddle Verse Short, steel rails, 145mm width
Weight 56 - 10.55 kg / 23.26 lbs
Maximum rider weight This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

* Subject to change without notice.

Videos

Trek Domane AL Gen 4: Wherever your road takes you

Part Numbers

Option UPC MPN Store SKU
Crimson to Dark Carmine Fade / 56 768682520123 5301362 BIK603225434
Matte Lithium Grey / 54 768682497845 5301347 BIK48981104
Matte Lithium Grey / 56 768682520208 5301348 BIK484291694
Matte Lithium Grey / 58 768682520246 5301349 BIK483353244
Plasma Grey Pearl / 49 768682520109 5301352 BIK47752254
