Trek Marlin 5 Gen 2

Trek Marlin 5 Gen 2
  • Color: Azure
  • Color: Lithium Grey
  • Color: Radioactive Red
  • Color: Volt to Miami Green Fade
$799.99
$929.99
Please select options
In Store / Curbside Pickup Only. Bike Orders are typically ready in 2 – 5 days*. *Bikes may need to be built or transferred from another location. This may add extra processing time.

Details

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail.

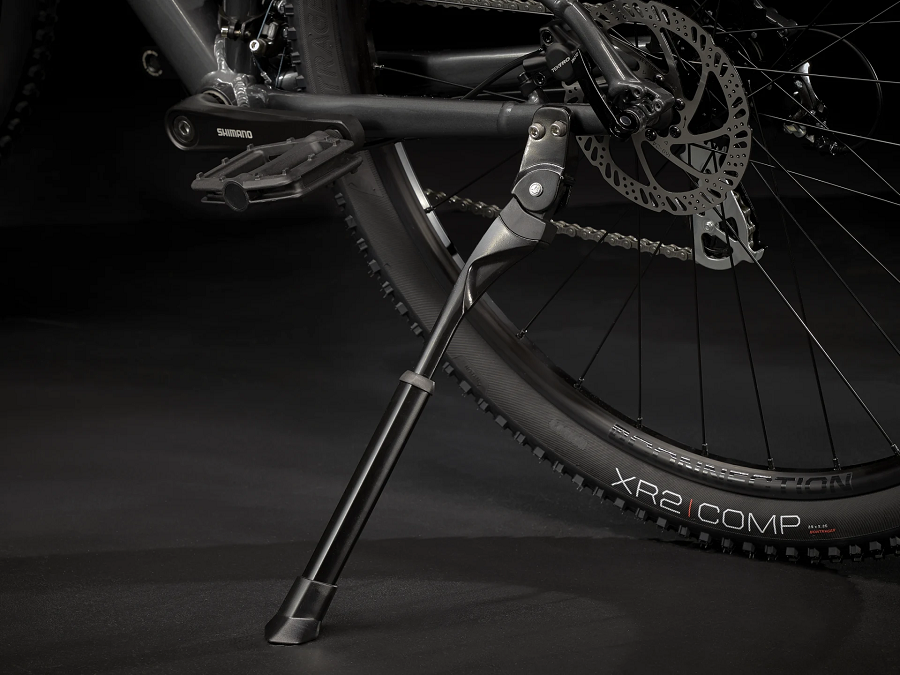

It's also versatile because the rack and kickstand mounts make it easy to accessorize and haul a load. Perfect for students or those with rugged commutes.

The Marlin 5 features a terrain smoothing 100mm suspension fork with lockout for pavement or hard surfaces where speed is welcomed. A Shimano Altus 2x8-speed drivetrain gives you a wide range of gearing so you always have the right gear for your terrain and powerful hydraulic disc brakes that work well in any weather.

What you get over Marlin 4:

- Suspension fork with lockout
- Shimano Altus 2x8-speed drivetrain for wider range gearing
- Hydraulic disc brakes

Due to supply-chain issues, Specs are subject to change without notice.

Wheel size:
- Size XX-Small: 26-inch
- Sizes X-Small – Small: 27.5-inch
- Sizes Medium – XX-Large: 29-inch

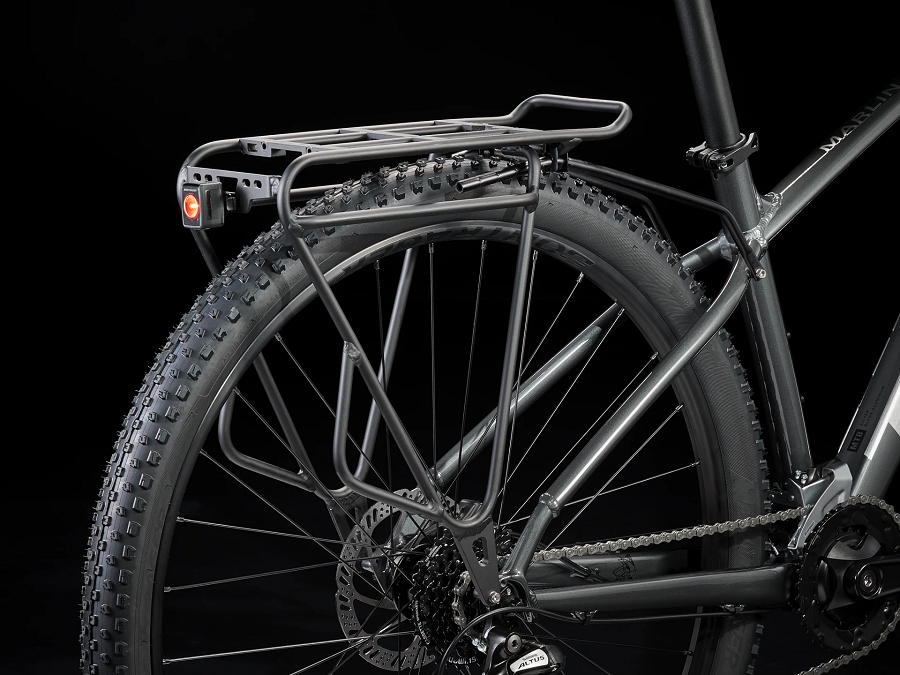

Rack and fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter.

Geometry

Sizing

Will my bike have a curved top tube?

Will my bike have a curved top tube?

Smaller frames (XXS-S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. The larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

Specs

Frame Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
Fork XX-Small = SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel
X-Small = SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel
Small = SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel
M, ML, L, XL, XXL = SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, 100mm travel
Rims Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve (XXS = alloy)
Hubs Front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Spokes 14g stainless steel
Tires Bontrager XR2 Comp, wire bead, 30 tpi (XXS = 26 x 2.20"; XS, S = 27.5 x 2.20"; M, ML, L, XL, XXL = 29 x 2.20")
Bottom Bracket VP BC73, 73mm, threaded cartridge
Crankset XXS = Prowheel TM-CY10, 36/22, 160mm length
XS, S, M = Shimano M315, 36/22, 170mm length
ML, L, XL, XXL = Shimano M315, 36/22, 175mm length
Shifters Shimano Altus M315, 8-speed
Front Derailleur Shimano Altus M315, 34.9mm clamp, top swing, dual pull
Rear Derailleur Shimano Altus M310
Cassette/Freewheel Shimano HG200, 12-32, 8-speed
Chain KMC Z8.3, 8-speed
Brakes XXS, XS, S = Tektro HD-M276 hydraulic disc, short reach lever
M, ML, L, XL, XXL = Tektro HD-M275 hydraulic disc
Rotors Shimano RT26, 6-bolt
Handlebars Bontrager alloy, 31.8mm, 5mm rise, 720mm width (XXS, XS: 690mm)
Tape/Grips Bontrager XR Endurance Comp, lock-on
Stem Bontrager alloy, 31.8mm, Blendr compatible, 7 degree
XXS = 35mm; XS = 50mm; S = 60mm; M = 70mm; ML, L = 80mm; XL = 90mm
Headset Semi-integrated, 1-1/8"
Seatpost Bontrager alloy, 31.6mm, 12mm offset
Saddle Bontrager Arvada, steel rails, 138mm width
Pedals VP-536 nylon platform

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Azure / Small / 27.5-inch 601842520994 5255602 BIK384576182
Azure / Medium / 29-inch 601842520987 5255603 BIK379327992
Lithium Grey / X-Small / 27.5-inch 601842521243 5255577 BIK419423032
Lithium Grey / Small / 27.5-inch 601842521236 5255578 BIK414088202
Lithium Grey / Medium / 29-inch 601842521229 5255579 BIK415366182
Lithium Grey / Medium/Large / 29-inch 601842521212 5255580 BIK417556032
Lithium Grey / Large / 29-inch 601842521205 5255581 BIK416482492
Lithium Grey / X-Large / 29-inch 601842521199 5255582 BIK412474322
Radioactive Red / Small / 27.5-inch 601842521151 5255586 BIK441614412
Radioactive Red / Medium/Large / 29-inch 601842521137 5255588 BIK443933462
Radioactive Red / XX-Large / 29-inch 601842521106 5255591 BIK456814812
Volt to Miami Green Fade / Medium / 29-inch 601842521069 5255595 BIK501912262
