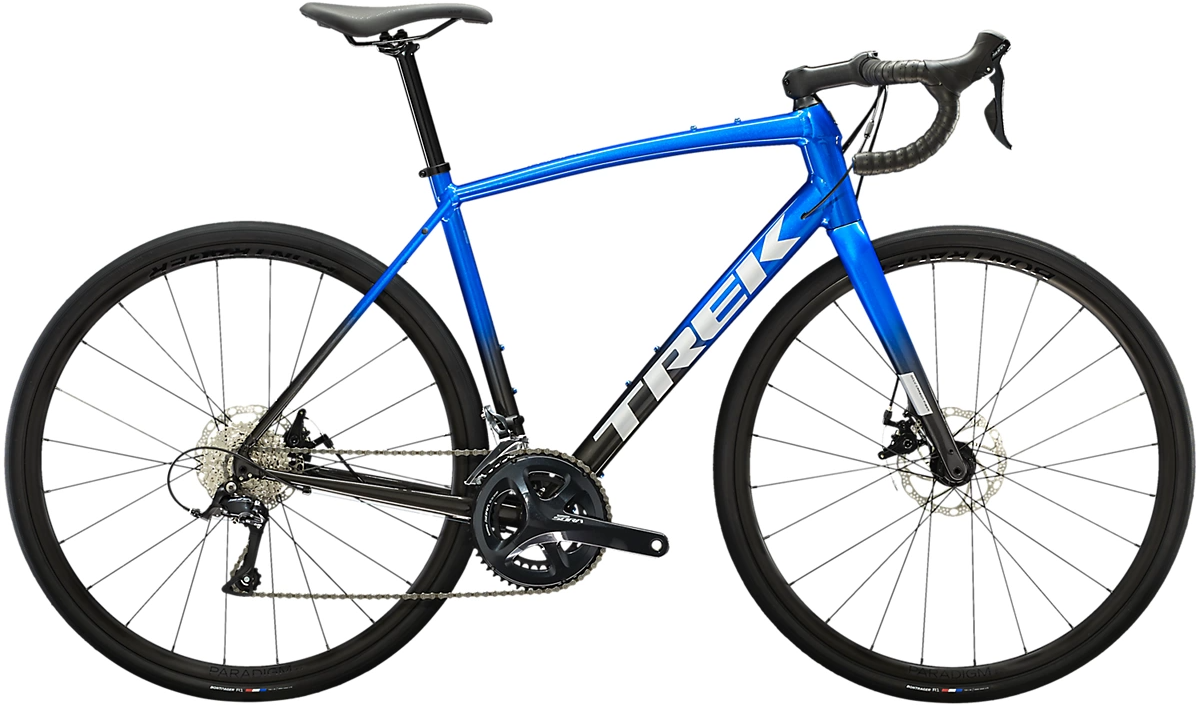

Trek Domane AL 3 Disc
Details
Hit the open road on the perfect bike for getting into road riding. Its comfort-first design is fast yet stable, and has disc brakes that perform well in any weather.
Domane AL 2 Disc is an awesome pick for your first road bike. The lightweight frame is responsive yet stable for a fun, confidence-inspiring ride.
Mounts on the top tube let you cleanly bolt on a bag for all day adventures. Stow your tools and gear (or your favourite mid-ride snacks)
The Shimano drivetrain has 16 speeds, with shifters that are integrated into the brake levers so your hands never have to leave the bars. The wide range of gears makes it easier to ride terrain that varies in elevation. The lightweight aluminum frame has mounts for fenders and a carbon fork—features that are not typically available in road bikes at this price point.
Domane AL 3 Disc is a smooth, stable, and super fun road bike. It's a blast on everything from longer loops to group rides and even light gravel trails.
The AL 3 Disc is an awesome pick for your first road bike. The lightweight frame is responsive yet stable for a fun, confidence-inspiring ride.
Mounts on the top tube let you cleanly bolt on a bag for all day adventures. Stow your tools and gear (or your favourite mid-ride snacks)
The Shimano Sora drivetrain has 18 speeds, with integrated brake/shift levers. It's a lighter parts group than Shimano's introductory groupset, and provides a wide range of gears that's great for climbing. The lightweight aluminum frame has a stable Endurance Geometry for a confident ride, disc brakes, a Domane carbon fork, mounts for fenders, and tubeless ready rims.
The AL 3 Disc comes stock with 32c tires but can fit up to 35c tires (without fenders) for more comfort and light gravel riding.
Planning to ride bigger hills and go on longer adventures? Check out Domane AL 3 or 4 with wider range gearing and lighter components.
Due to supply-chain issues, Specs are subject to change without notice.
Pedals sold separately.
Sora is a lighter parts group than Shimano's introductory groupset, and provides a wide range of gears that's great for climbing.
| Frame Size | Rider Height | Inseam |
|---|---|---|
| 44 | 4'11.1" - 5'0.2" | 28.0" - 28.7" |
| 49 | 5'1.4" - 5'3.8" | 29.1" - 30.3" |
| 52 | 5'4.2" - 5'6.1" | 29.9" - 31.1" |
| 54 | 5'6.1" - 5'8.5" | 30.7" - 32.3" |
| 56 | 5'8.5" - 5'10.9" | 31.9" - 33.5" |
| 58 | 5'10.9" - 6'0.8" | 33.1" - 34.3" |
| 61 | 6'0.8" - 6'3.2" | 33.9" - 35.4" |
| Frame size number | 44 cm | 49 cm | 52 cm | 54 cm | 56 cm | 58 cm | 61 cm |
|---|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube (cm) | 39 | 44 | 47.5 | 50 | 52.5 | 54.8 | 57.6 |
| B — Seat tube angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.7° |
| C — Head tube length (cm) | 9.5 | 12.3 | 14.5 | 16 | 17.5 | 19.5 | 23.5 |
| D — Head angle | 70.3° | 70.8° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° |
| E — Effective top tube (cm) | 50.7 | 51.6 | 53 | 54.2 | 55.4 | 56.7 | 58.6 |
| G — Bottom bracket drop (cm) | 8 | 8 | 8 | 8 | 7.8 | 7.8 | 7.5 |
| H — Chainstay length (cm) | 42 | 42.5 | 42 | 42 | 42 | 42.5 | 42.5 |
| I — Offset (cm) | 5.3 | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
| J — Trail (cm) | 6.6 | 6.6 | 5.9 | 5.9 | 6.1 | 6 | 6.3 |
| K — Wheelbase (cm) | 98.3 | 100.1 | 100.3 | 101 | 100.8 | 102.2 | 103.8 |
| L — Standover (cm) | 65.7 | 71.7 | 73.5 | 75.4 | 77.6 | 79.6 | 84.2 |
| M — Frame reach (cm) | 36 | 36.8 | 37.1 | 37.4 | 37.7 | 38 | 38.5 |
| N — Frame stack (cm) | 51 | 54 | 56.1 | 57.5 | 59.1 | 61.1 | 64.6 |
Specs
| Frame | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Rims |
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, presta valve OR Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, presta valve |
| Hubs |
Front: Formula RX-512 alloy, 6-bolt, 100x12mm thru axle Rear: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle |
| Spokes | 14g stainless steel |
| Tires | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c |
| Bottom Bracket | Shimano RS500, 68mm, threaded external |
| Crankset | Shimano Sora R3000, 50/34 (compact) |
| Shifters | Shimano Sora R3000, 9 speed |
| Front Derailleur | Shimano Sora R3000, 31.8mm clamp |
| Rear Derailleur | Shimano Sora R3000, mid cage, 34T max cog |
| Cassette/Freewheel | Shimano Sora HG400, 11-32, 9 speed |
| Chain | Shimano Sora HG53, 9 speed |
| Brakes | Tektro C550 mechanical disc brake, dual piston, flat mount, 160mm rotor |
| Handlebars | Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop |
| Tape/Grips | Bontrager Supertack Perf tape |
| Stem | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset |
| Saddle | Bontrager P3 Verse Comp, steel rails |
| Pedals | Sold separately |
| Weight | 56 - 10.30 kg / 22.71 lbs |
* Subject to change without notice.
Videos
Domane AL Disc
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Alpine Blue to Dnister Black Fade / 49cm | 601842614921 | 5263475 | BIK606816602 |
| Alpine Blue to Dnister Black Fade / 52cm | 601842614914 | 5263476 | BIK608675782 |
| Alpine Blue to Dnister Black Fade / 54cm | 601842614907 | 5263477 | BIK609650472 |
| Alpine Blue to Dnister Black Fade / 56cm | 601842614891 | 5263478 | BIK604237712 |
| Alpine Blue to Dnister Black Fade / 58cm | 601842614884 | 5263479 | BIK603489672 |
