Trek Checkpoint ALR 5

Trek Checkpoint ALR 5
  • Color: Satin Nautical Navy/Satin Red
  • Color: Era White/Trek Black
$2,899.99
$3,099.99
Please select options
In Store / Curbside Pickup Only. Bike Orders are typically ready in 2 – 5 days*. *Bikes may need to be built or transferred from another location. This may add extra processing time.

Details

Checkpoint ALR 5 is the best value gravel bike in the lineup. It's a high-quality build that will hold up for long, rugged miles on pavement, dirt, and even the most treacherous gravel roads.

Unlike the pure roadie who measures watts and weighs out meals, you favor epic off-road adventures that probably end with a beer and a burrito. But that doesn't mean you'll compromise on performance. You expect to get a lot for your hard-earned dollar, including quality, versatility, durability, and a ridiculous amount of fun.

The Checkpoint ALR features a stout aluminum frame with progressive geometry that's stable at speed and efficient when you're grinding up a climb, hidden cables that won't interfere with bags, rack and fender mounts and integrated frame bag mounts, a 2x11 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel, hydraulic disc brakes for all-condition stopping power, tubeless ready rims, and wide 700x40c gravel tires for added stability and traction.

All Checkpoint ALR, SL and SLR come set up with 700x40c tubeless tires. Valves, sealant, and rim strip included.

Want a carbon frame and a performance-level drivetrain on your bike? Check out the Trek Checkpoint SL 5, with an upgraded drivetrains and a 500 series OCLV carbon frame.

Due to supply-chain issues, Specs are subject to change without notice.

2x11 Shimano GRX drivetrain with lower gears (46/30 chainring paired with an 11-34 tooth cassette) helps you grind up hills or through rough gravel, and the powerful GRX hydraulic brakes keep you in control on the descent.

Lots of clearance means you can run meatier tires (700x45mm or 27.5x2.1") for tackling chunkier gravel and terrain.

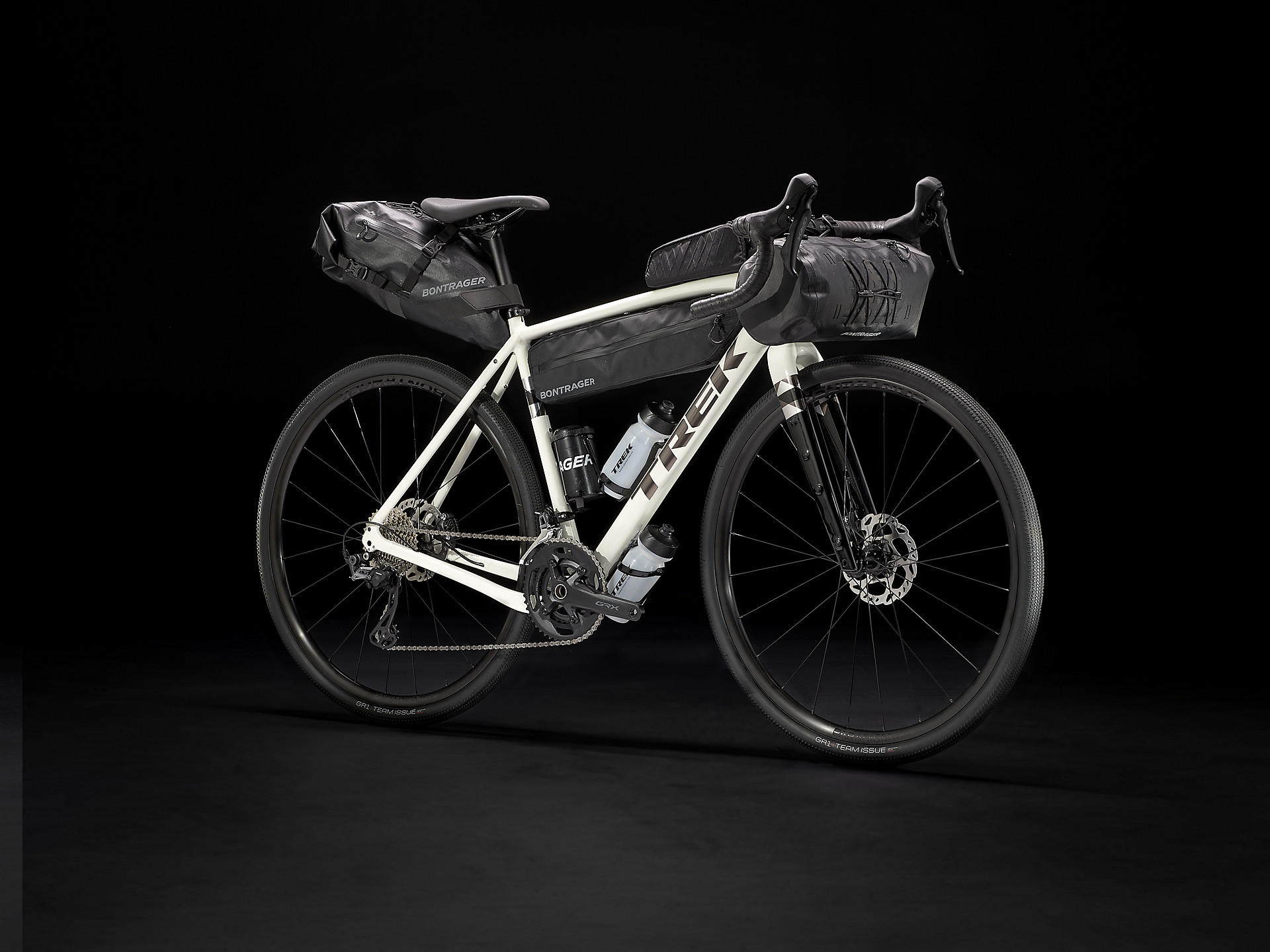

Integrated frame bag and fender mounts make it easy to carry gear and water.

All Trek Checkpoint ALR, SL and SLR models come tubeless out of the box. Sealant, valves, and rim stips included.


Ditching the tubes and going tubeless will help you get the most performance out of your tires. There are no tubes to pinch, so you can run lower pressures for better traction, and you get more control and a smoother, faster ride. As an added bonus, a tubeless setup can help seal punctures before they become flats.

bike frame with labeled dimensions
Bike Sizes:
49 cm52 cm54 cm56 cm58 cm61 cm
A. Reach 39.3cm 39.9cm 40.3cm 40.7cm 41.1cm 41.7cm
B. Stack 53.8cm 55.3cm 57.1cm 59.2cm 60.9cm 63.9cm
C. Standover 73.5cm 76.5cm 78.9cm 80.9cm 82.9cm 85.9cm
D. Effective Top Tube 54.1cm 55.5cm 57cm 58.4cm 59.7cm 61.7cm
E. Head Tube Angle 71.2° 71.6° 71.8° 72.2° 72.3° 72.6°
F. Head Tube Length 9cm 10.5cm 12.5cm 14.5cm 16.5cm 19.5cm
G. Seat Tube Angle 74.1° 73.7° 73.2° 72.8° 72.5° 72.1°
H. Seat Tube Length 49cm 52cm 54cm 56cm 58cm 61cm
J. Bottom Bracket Drop 7.8cm 7.8cm 7.6cm 7.6cm 7.4cm 7.4cm
K. Fork Rake/Offset 4.5cm 4.5cm 4.5cm 4.5cm 4.5cm 4.5cm
L. Trail 7.4cm 7.1cm 7cm 6.7cm 6.6cm 6.5cm
M. Wheelbase 102.5cm 103.3cm 104.1cm 104.8cm 105.8cm 107cm
O. Chainstay Length 43.5cm 43.5cm 43.5cm 43.5cm 43.5cm 43.5cm

Specs

Frame 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Fork Checkpoint, carbon legs, tapered alloy steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Rims Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, presta valve
Hubs Front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Rear: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Spokes 14g stainless steel
Tires Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c
Bottom Bracket Praxis, T47 threaded, internal bearing
Crankset Shimano GRX RX600, 46/30
Shifters Shimano GRX RX600, 11 speed
Front Derailleur Shimano GRX RX810, braze-on
Rear Derailleur Shimano GRX RX810, long cage, 34T max cog
Cassette/Freewheel Shimano 105 HG700-11, 11-34, 11 speed
Chain Shimano 105 HG601
Rotors Shimano SM-RT70, centerlock, 160mm
Handlebars Bontrager Elite Gravel
Tape/Grips Bontrager Supertack Perf tape
Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree
Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Saddle Bontrager P3 Verse Comp, steel rails
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Satin Nautical Navy/Satin Red / 52cm 601842588116 5260852 BIK628077312
Satin Nautical Navy/Satin Red / 56cm 601842588093 5260854 BIK622846592
Satin Nautical Navy/Satin Red / 58cm 601842588086 5260855 BIK625178892
Satin Nautical Navy/Satin Red / 61cm 601842588079 5260856 BIK624627162
Era White/Trek Black / 52cm 601842588178 5260846 BIK544681982
Era White/Trek Black / 54cm 601842588161 5260847 BIK543728532
Era White/Trek Black / 56cm 601842588154 5260848 BIK549584742
Era White/Trek Black / 58cm 601842588147 5260849 BIK54160942
