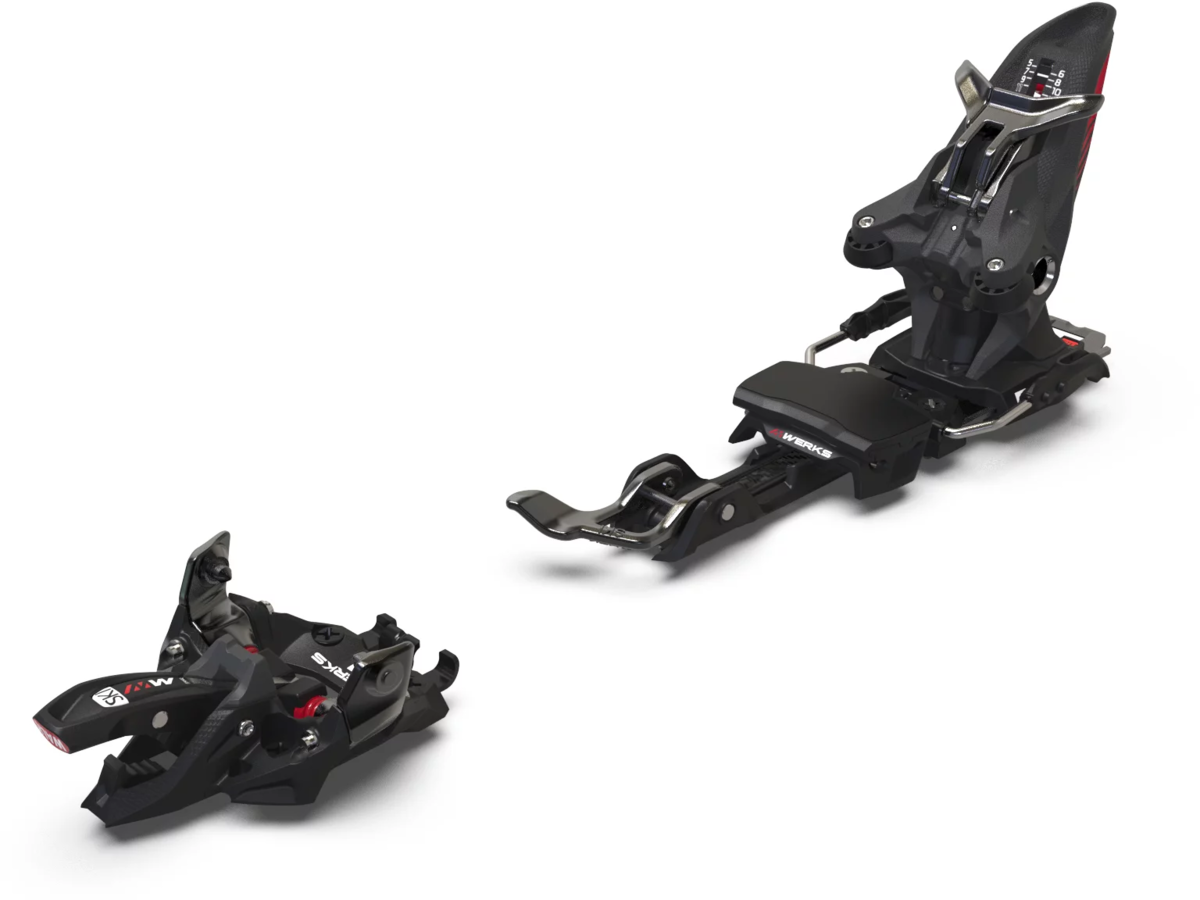

Marker Marker Kingpin 12 M-Werks Alpine Touring Ski Binding
Details
*New for 2023* - The new and improved "Intuitive Step In" tech toepiece features a rubber stop pad and a wider step-in platform with easier step-in than previous models.
Only the finest components are good enough for the Kingpin M-Werks 12.
This state of the art touring binding with a DIN setting up to 12 weighs only 620g per piece (including brake) and provides all the stunning Kingpin performance features like XXL power transmitter or ergonomic climbing aids. Additionally the M-Werks edition comes with carbon reinforced toe, heel and sliding plate for light and powerful skiing experience. The featherfin-shaped ski/walk mode lever offers easy handling at a minimum weight.
Weight: 1.310g / 2.88lbs (per pair)
DIN: 5-12
Skier Weight: 45- 114kg / 100-250 lbs
CLIMBING AIDS KINGPIN
The climbing aid offers two positions with 7° and 13° which can easily be accessed with the ski pole, even in an unstable standing position. Integrated elastomer paddings dampen the impact reducing the irritating traditional “clack” and allow more comfortable hiking.
VERTICAL & LATERAL ADJUSTABLE RELEASE FUNCTION
Vertical and lateral individually adjustable release in the heel for improved release functionality.
CRAMPON KINGPIN/ALPINIST
Easy to install crampons for KINGPIN and Alpinist available in the sizes 80mm, 90mm, 105mm, 120mm
ISI TOE
Rubber stop pad: Boot tip is aligned/stopped when stepping in.
Wider step-in platform: Enlarged contact area for boot sole when stepping in.
Easier step-in: Toe piece “snaps/clicks into the boot” with a lot less force required.
Specs
| Best Use | Freeride Touring |
|---|---|
| Skill Level | Advanced to Expert |
| Binding Weight | 1.310g / 2.88lbs (per pair) |
| Boot Compatibility | Requires Tech Fittings at the Toe and ISO 9523 Touring or ISO 5355 Alpine Heel Dimensions |
| Heel Risers | 0°, 7°, 13° |
| DIN | 5-12 |
| Skier Weight | 45- 114kg / 100-250 lbs |
| Brakes | 75-100mm and 100-125mm options |
| Toe | ISI toe with rubber stop pad |
| Heel | KINGPIN heel |
| Heel Adjust Range | 25mm |
| Elastic Heel Travel | 6mm |
| Stand Height | 21.5mm |
| Crampon Ready | Kingpin / Alpinist Crampons - 80mm, 90mm, 105mm, 120mm options available |
| Warranty | 3 year limited warranty |
* Subject to change without notice.
Videos
Marker Kingpin M-Werks
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| 75-100mm | 883295404643 | 7831W1CS | SKI644598722 |
| 100-125mm | 883295404650 | 7831W1CW | SKI651195272 |
