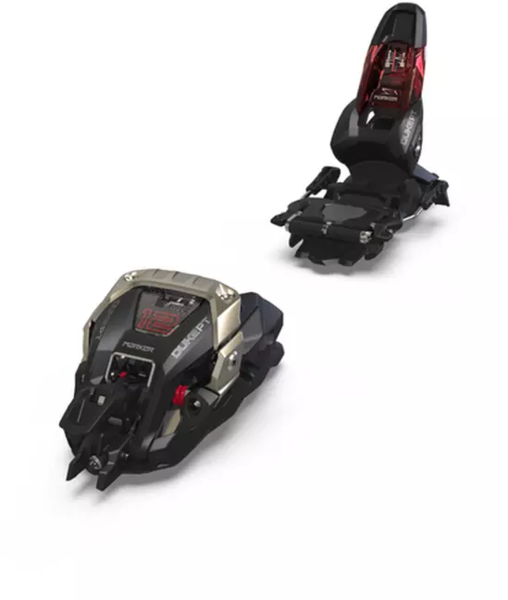

Marker Duke PT 12 Alpine Touring Ski Bindings

Marker Duke PT 12 Alpine Touring Ski Bindings
  • Size: 100mm
$594.99
$849.99
Color: Black/Red
Size: 100mm
Please select options Unavailable

Details

Hybrid Freeride binding for skiers looking for the ultimate versatility in their setup, with uncompromising big mountain performance plus the ability to take advantage of true Pin Tech climbing functionality.

The biggest highlight of this binding is the innovative Quad-Lock Ride & Hike toe. In ride mode, it provides uncompromising downhill performance with full safety release properties from DIN 4-12. Switching the binding to hiking mode is simply a matter of unlocking the upper part of the toe piece and rotating it forward.

Pin binding technology is integrated into the base plate underneath the toe housing and operates in much the same way as Marker's KingPin and Alpinist models. In uphill mode, you have the option of saving 250 grams weight per foot by removing the toe housing sections and stowing them in your backpack.

To switch to downhill mode, the toe housing clicks back onto the base plate. It locks back into place thanks to Auto Quad-Lock technology, just by stepping into the binding, without any extra action required by the skier.

Another advantage, the Hollow Linkage heelpiece gives the skier the security and power transmission as our Squire freeride binding on the way down.

The Duke PT also features SOLE.ID technology, just like other products in the Royal Family. This makes the binding compatible with all boot sole types falling under the Alpine (ISO 5355), Touring (ISO 9523), or GripWalk (ISO 9523) norms.

ANTI-ICE RAIL
- Use the metal rail to scratch off ice and snow below your boot sole.

LOCK & WALK BRAKE
- Including neutral walking mode and 10° climbing aid.

AUTO QUAD LOCK
- Toe part locks itself at 4 different points automatically when stepping into the binding.

RIDE & HIKE TOE
- For great Royal Family downhill performance and release function combined with pin-technology for strong uphill performance; DIN 4-12

Convertible toe:
- Save 300g per foot for the uphill.

SOLE.ID
- Height-adjustable gliding plate to be compatible with alpine (ISO 5355), touring (ISO 9523), and GripWalk soles. Easy to adjust: Pozi screw at the front to adjust the height of the gliding plate.

HOLLOW LINKAGE HEEL
- The Hollow Linkage Heel was designed to optimize retention for all common types of alpine and touring soles. The hollow axle saves on weight and maximizes the torsional stiffness. The very robust construction is best suited for the most strenuous requirements.

Specs

Recommended Use Freeride Touring, All Mountain
DIN Range 4.0 - 12.0
Skier Weight Range 36-114kg / 80-250lbs
Boot Compatibility Alpine , GripWalk , Touring
Weight (pair) Uphill: 1.7 kg /3.74 lbs , Downhill: 2.30 kg / 5.06 lbs
Riser Options 0, 7, 13 Degrees
Brake Width Options 100mm, 125mm
Toe Ride & Hike
Heel Inter Pivot 3
Heel Adjust Range 60mm
Stand Height 24mm
Crampon-Compatible Yes - Marker Duke PT crampon
Warranty 3 year limited warranty

* Subject to change without notice.

Videos

Marker_DUKE_PT_Function

Marker Duke PT how-to on stepping in and changing modes

Part Numbers

Option UPC MPN Store SKU
Black/Red / 100mm 883295400546 7550U1EB SKI413911881
