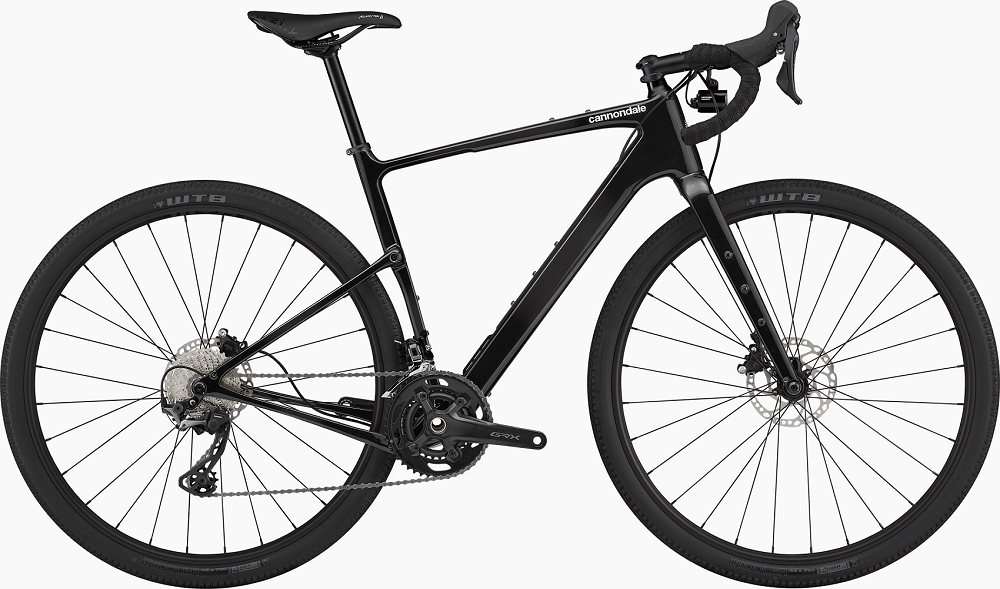

Cannondale Topstone Carbon 3 L

Cannondale Topstone Carbon 3 L
  • Color: Carbon
  • Color: Carbon
  • Color: Carbon
  • Color: Carbon
  • Color: Carbon
  • Color: Carbon
$4,050.00
$4,365.00
Color: Carbon
Size: Select size
Please select options Unavailable
In Store / Curbside Pickup Only. Bike Orders are typically ready in 2 – 5 days*. *Bikes may need to be built or transferred from another location. This may add extra processing time.

Details

The best gravel bike for anything from dirt roads to singletrack trails. With the grip and comfort of the Kingpin suspension, nothing is off-limits.

Where it thrives
Gravel and Dirt Roads, Rough Pavement, Trails

What it's built for
Gravel riding, back road exploring, bike packing and off-road adventures

Highlights
Lightweight Topstone Carbon frameset with Kingpin suspension / SmartSense Light equipped
Shimano GRX 800/600 11-speed gravel group
WTB ST i23 TCS rims / 700x45c WTB Riddler TCS Light tires

Geometry Chart:
SizeX-SmallSmallMediumLargeX-Large
Seat Tube Length (cm) 41 45.8 50.5 55.3 59
Top Tube Horizontal (cm) 53.3 54.4 55.7 57.2 58.7
Top Tube Actual 50.3 51.6 53.2 55 56.7
Head Tube Angle 70.0° 71.2° 71.2° 71.2° 71.2°
Seat Tube Angle Effective 73.1° 73.1° 73.1° 73.1° 73.1°
Seat Tube Angle Actual 71.4° 71.6° 71.8° 71.9° 72.1°
Standover (cm) 70.4 74.5 78.5 82.3 85.7
Head Tube Length (cm) 10.5 12.3 15 17.7 20.5
Wheelbase (cm) 101 101.3 102.9 104.4 106.1
Front Center (cm) 60.1 60.3 61.7 63.3 64.9
Chain Stay Length (cm) 42 42 42 42 42
Bottom Bracket Drop (cm) 7.4 6.9 6.7 6.7 6.4
Bottom Bracket Height (cm) 27.8 28.3 28.5 28.5 28.8
Fork Rake (cm) 5.5 5.5 5.5 5.5 5.5
Trail (cm) 6.9 6.2 6.2 6.2 6.2
Stack (cm) 53.4 55.1 57.4 60 62.4
Reach (cm) 37.1 37.7 38.3 39 39.7
Sizes:
SizeHeight (inches)Height (cm)
X-Small 5’0” - 5’5” 152 - 165cm
Small 5’4” - 5’9” 162 - 175cm
Medium 5’7” - 6'1" 170 - 185cm
Large 5’11” - 6'4" 180 - 193cm
X-Large 6’3” - 6'8" 190 - 203cm

Part Numbers

Option UPC MPN Store SKU
Carbon / Small 884603931073 C15302U10SM BIK55316103
Carbon / Medium 884603931080 C15302U10MD BIK557349353
