Cannondale SuperSix EVO 3
Details

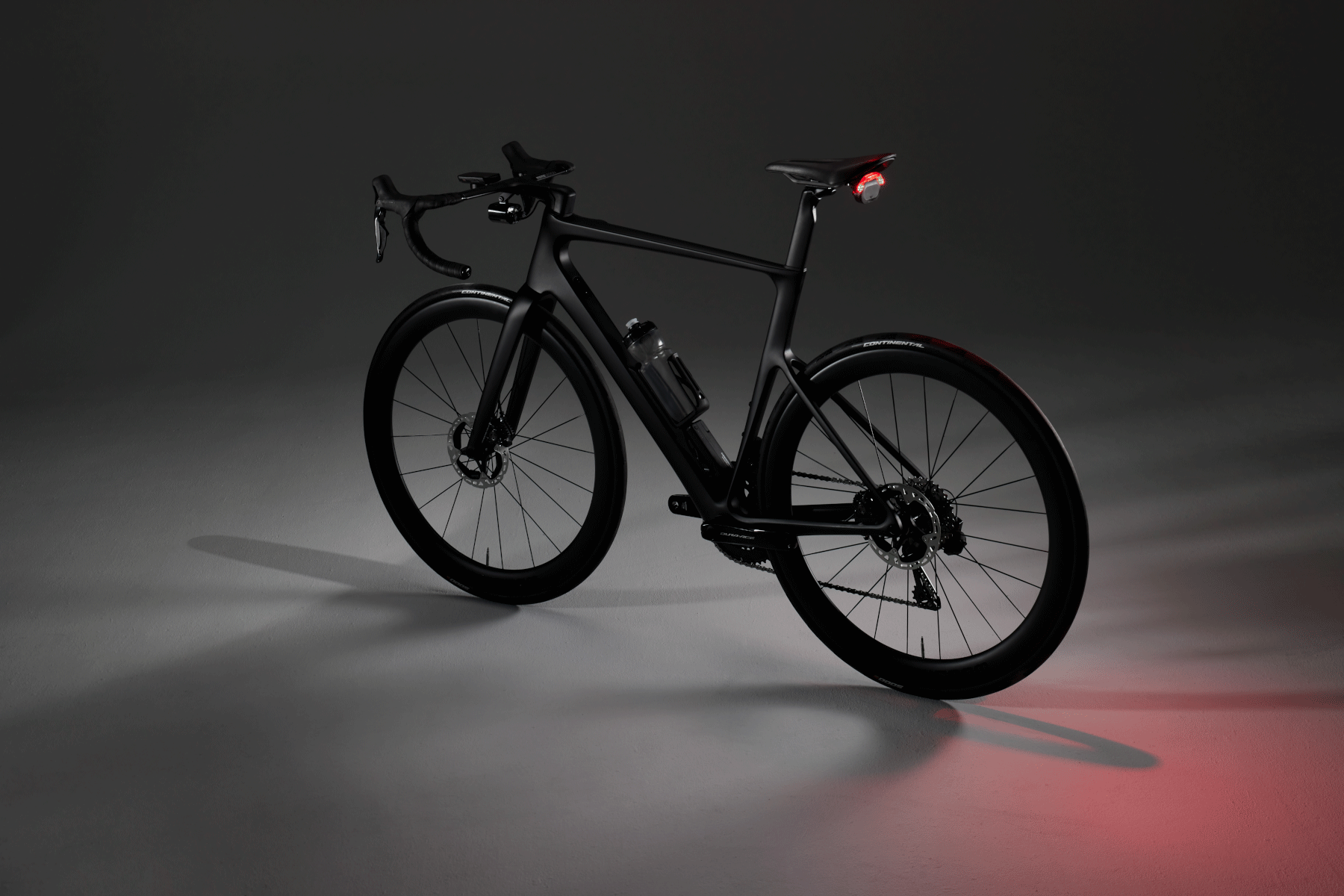

The all-new SuperSix EVO destroys expectations. So light, so fast, and so aero, it defies logic. This is a machine built to make you faster everywhere. Speed has evolved.
The SuperSix EVO 3 features a lightweight carbon frameset, a Shimano 105 Di2 2x12 speed drivetrain for crisp performance shifting, Vision Trimax Carbon Aero bars and a Cannondale C1 Conceal stem giving you an ergonomic, low-drag cockpit with hidden cables.
When it comes to aerodynamic drag, the new SuperSix EVO is not just one of the fastest lightweight road bikes out there, it’s one of the fastest road bikes, period. Its precisely engineered tube shapes and select components shave around 9 watts off of our last generation model at 45 km/h, putting it ahead of a lot of the pure "aero" bikes while weighing up to a kilo less.
Room for 30mm wide tires (with over 6mm of clearance on either side) means SuperSix EVO can ride or race the way you want it to. Run wider tires for more comfort and control, or slim down for lightweight responsiveness.
Shimano 105 Di2 utilizes a wireless cockpit paired with a wired connection between a single, seat-tube-stored battery and the front and rear derailleurs, ensuring absolute reliability in all conditions.
Just like Dura-Ace and Ultegra, the 105 Di2 system is highly customizable using Shimano’s E-TUBE PROJECT Cyclist App on your smartphone. With the app, you can set-up your drivetrain just the way you like it, adjusting shift speed, altering the number of shifts per button actuation, and utilizing Synchronized and Semi-Synchro shifting functionality.
You can also pair the system with third party cycling computers such as Garmin and Wahoo, which allow you to monitor gear selection and battery status.
SuperSix EVO is compatible with Cannondale's innovative SmartSense system (sold separately). Stay visible and aware of your surroundings, with on-board lights, a rear-facing radar system, and one battery to power it all.
Pair SmartSense with a Garmin or Wahoo computer (sold separately) to alert you when cars are approaching from behind on the display screen.
With weights as low as 915g for a fully-painted, 56cm frame, the new SuperSix EVO Carbon is exceptionally light for a bike with this level of aerodynamic efficiency.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Seat Tube Length (cm) | 40 | 43.8 | 47.7 | 51.5 | 53.4 | 56.7 | 60 |
| Top Tube Horizontal (cm) | 51.2 | 52 | 52.8 | 54.6 | 56.2 | 57.8 | 60.3 |
| Top Tube Actual (cm) | 46.9 | 47.9 | 48.9 | 50.9 | 52.3 | 54.1 | 56.4 |
| Head Tube Angle | 70.9° | 71.2° | 71.2° | 71.2° | 73° | 73° | 73° |
| Seat Tube Angle | 74.3° | 74.3° | 74.3° | 73.7° | 73.3° | 72.9° | 72.3° |
| Standover (cm) | 69.8 | 72.7 | 75.6 | 78.8 | 80.7 | 83.6 | 86.6 |
| Head Tube Length (cm) | 10 | 11.4 | 13 | 15.4 | 16.5 | 18.8 | 22 |
| Wheelbase (cm) | 98.1 | 98.7 | 99.6 | 101 | 99.4 | 100.7 | 102.4 |
| Front Center (cm) | 58.2 | 58.9 | 59.8 | 61.1 | 59.4 | 60.7 | 62.4 |
| Chain Stay Length (cm) | 41 | 41 | 41 | 41 | 41 | 41 | 41 |
| Bottom Bracket Drop (cm) | 7.4 | 7.4 | 7.4 | 7.2 | 7.2 | 6.9 | 6.9 |
| Bottom Bracket Height (cm) | 26.8 | 26.8 | 26.8 | 27.1 | 27.1 | 27.3 | 27.3 |
| Fork Rake (cm) | 5.5 | 5.5 | 5.5 | 5.5 | 4.5 | 4.5 | 4.5 |
| Trail (cm) | 6 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| Stack (cm) | 50.5 | 52 | 53.5 | 55.5 | 57.5 | 59.5 | 62.5 |
| Reach (cm) | 37 | 37.4 | 37.8 | 38.4 | 38.9 | 39.5 | 40.3 |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm) |
| Hubs | (F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock |
| Rims | DT Swiss R470 db, 28h |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6° |
| Chain | Shimano 105, 12-speed |
| Frame | SuperSix EVO Carbon,integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible |
| Tires | Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip |
| Brakes | Shimano 105 R7170 hydraulic disc, 160/160mm RT70 rotors |
| Saddle | Prologo Nago RS STN, Stainless Steel Rails |
| Spokes | Stainless Steel, 14g |
| Headset | Integrated, 1-1/8" - 1-1/4" |
| Crankset | Shimano 105 R7100, 50/34 |
| Seatpost | Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm) |
| Shifters | Shimano 105 Di2 R7170, wireless, 2x12-speed |
| Chainrings | Shimano 105 R7100, 50/34 |
| Handlebars | Vision Trimax Aero |
| Tape/Grips | Cannondale Bar Tape, 3.5mm |
| Brake Levers | Shimano 105 R7170 hydraulic disc, |
| Bottom Bracket | Shimano BB-RS500, BSA |
| Rear Derailleur | Shimano 105 Di2 R7150 |
| Front Derailleur | Shimano 105 Di2 R7170 |
| Cassette/Freewheel | Shimano 105 R7100, 11-30, 12-speed |
* Subject to change without notice.
